Fully engineered and designed as an optimized LED outdoor lighting system, the X-Series provides the highest efficiency rating in the market today by delivering up to 115 lumens per watt without sacrificing lighting or application performance. With premier Philips High Brightness optical modules and drivers, the X-Series achieves superior optical control and light diffusion with standard dimmable smart technology, over-voltage and under- voltage protection, and custom heat-dissipation enclosures that ensure maximum lifetime for optics and drivers. And with a modular design capable of ranging from 70-324 Watts in a single enclosure design, the X-Series is the best alternative available to traditional street lighting today, delivering a better payback and superior performance at a competitive price.

Performance Highlights:

  • Philips High Brightness LED Modules, Drivers, and, Surge Protectors
  • Dimmable Smart-Technology with over-heating protection
  • Optional Constant Lumen Output (CLO) option offers L95 at 50,000 hours
  • Philips StarSense wireless monitoring and maintenance programs
  • Warranty: 10 years limited warranty with optional extended plans

Product Specifications:

Construction & Materials

  • Aluminum housing with custom protective coating
  • IP 66 rated enclosure
  • Mounts on 1.25” IP (1.66” [42mm] O.D.) or 2” IP (2.375” [60mm] O.D.) horizontal tenon
  • Designed with 1–10V dimming capabilities
  • Optional Dali and Time Based dimming capabilities

Electrical System

  • Standard Voltage: 120–277V, 50/60Hz
  • Optional Voltage: 347-480V, 60Hz
  • Power Factor: > 0.95 at full load
  • Total Harmonic Distortion: < 20% at full load
  • Integral 10kV surge suppression protection standard
  • Operation in -30° C to 40° C ambient environments

Optical Modules

  • Color Temperature: 4000K or 5700K
  • CRI: >70
  • L95 at 50,000 hours with constant lumen output options
  • Custom light distribution options provide illuminance control

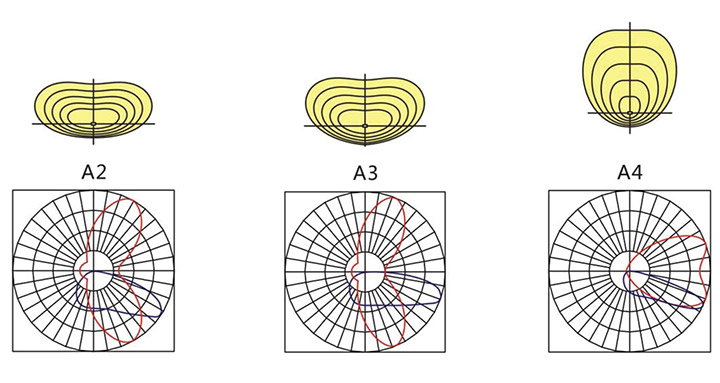

Available Lighting Distributions

X-Series Available Light Distributions
